How to Disassemble a Monitor: A Step-by-Step Guide
Step-by-step methods to safely disassemble a monitor for inspection, cleaning, or component replacement. Learn about safety, tools, workflow, reassembly, and warranty considerations with practical tips from Disasembl.
Learn how to safely disassemble a monitor for inspection or repair. This guide covers unplugging power, removing the stand, opening the rear housing, disconnecting cables, and handling the LCD panel with care. Follow step-by-step instructions and safety tips you need to avoid damaging delicate components or voiding warranties. Before you begin, gather the right tools and safety gear to reduce risk.
Why disassemble a monitor and when it makes sense
According to Disasembl, understanding the internal layout of a monitor helps you diagnose issues, perform routine cleaning, or replace components without replacing the entire unit. Disassembly is rarely necessary for simple troubleshooting, but when you do it correctly, you can access the power supply, driver boards, and LCD panel for inspection. This knowledge also helps you decide whether a repair is cost-effective or if a replacement is the better option. In this guide, we focus on typical consumer LCD monitors and emphasize safety, organization, and a methodical approach to minimize risk.
Safety first: electricity, ESD, and panel handling
Monitors contain high-voltage components that can retain charge even after unplugging. Always unplug the device and wait a short period before touching internals. Use an anti-static wrist strap or work on an anti-static mat to prevent electrostatic discharge. Handle the LCD panel by its edges, avoid touching the glass, and keep fingers away from driver boards and ribbon cables. If you see damaged cables, cracks in the panel, or signs of moisture, stop and reassess the task. Disassembly should only be performed in a clean, dry workspace with adequate lighting.
Tools, workspace, and preparation you should not skip
A safe disassembly starts with the right tools and a clean workspace. Assemble a basic toolkit with a Phillips and Torx screwdriver set, plastic pry tools, and a soft cloth for surfaces. A labeled parts tray or zip bags helps keep screws organized by location. Clear your desk, lay down a non-slip mat, and photograph each step as you progress to simplify reassembly. Keep a notebook handy to document connector orientations and cable routing. These preparations reduce the risk of misplacement and damage during reassembly.
High-level disassembly workflow: overview of stages

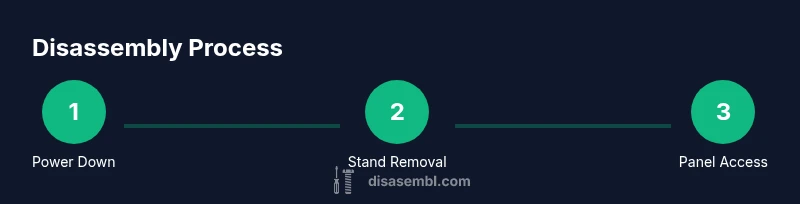

Most monitor disassembly follows a predictable sequence: detach the stand, remove the rear housing, disconnect external cables, access the internal boards, and finally separate the LCD panel if needed. Each stage presents unique risks; for example, removing the back panel may reveal fragile connectors, while removing the LCD panel requires careful handling to avoid micro-cracks. By outlining these stages, you create a mental map that minimizes guesswork and supports a smoother reassembly.
Removing the stand and rear cover: groundwork for access
Begin by supporting the monitor with the screen facing up on a soft surface. Remove the stand screws that attach the base to the back of the panel assembly, then carefully lift the stand away. With the stand removed, locate the rear cover screws around the perimeter and set them aside in labeled containers. As you remove the back cover, keep track of any small clips that hold the panel in place. Team up with a friend or use a padded tool to gently pry the cover if it resists.
Disconnecting internal cables and identifying connectors
After removing the back cover, gradually uncover ribbon cables and connectors along the edge of the main board. Note each connector’s orientation and take photos before unplugging anything. Use a plastic spudger or your fingernails to lift locking tabs without exerting excessive force. Avoid pulling on cables themselves; instead, grip connector housings to disconnect them. Label cables with a brief note about their path to preserve correct routing during reassembly.
Removing the LCD panel safely: handling the fragile core
The LCD panel is the most delicate component of the monitor. Support it from the sides, never press on the glass surface, and lift it evenly to avoid bending. If the panel is secured by brackets or silicone gaskets, remove those with steady, even pressure. Place the panel on a soft, non-scratch surface to prevent chips or cracks. Inspect edges for any damage and keep a record of the panel’s orientation for accurate reassembly.
Internal inspection, drivers, and connectors: what to look for
With the panel removed or exposed, inspect the driver boards, power supply, and cables for signs of heat damage, bulging capacitors, or loose connectors. Look for corrosion around connectors and ensure there are no foreign objects inside the housing. If you find a problematic component, consult troubleshooting guides before replacement. Capture clear macro photos and label any parts you plan to reuse or discard.
Reassembly planning: step-by-step reverse-engineering
]
Post-disassembly checks and safe storage
Documentation, warranties, and what to do next to protect your device
Tools & Materials
- Screwdriver set (Phillips and Torx)(Include Phillips #1 and #2; Torx bits if available for security screws.)
- Plastic opening tools(Non-marring tools to separate plastic housings.)
- Anti-static wrist strap or mat(Prevents electrostatic discharge on sensitive components.)
- Soft microfiber cloth(Protects surfaces and prevents scratches.)
- Magnetic parts tray or labeled containers(Keeps screws organized by location.)
- Good lighting(Front-lit work area to see small connectors clearly.)
- Camera or smartphone(Document steps and connector orientations.)
- Small containers or zip bags(Label bags by panel area or screw type.)
- Anti-slip mat(Provides a stable work surface and prevents slips.)
Steps
Estimated time: 60-120 minutes
- 1
Power down and prep workspace
Unplug the monitor and any connected power sources. Allow any residual charge to dissipate for a few minutes, especially if the monitor has a large internal capacitive bank. Clear your desk, lay out tools, and photograph the initial setup for reference.
Tip: Always unplug first and test for no residual power with a basic multimeter if you have one. - 2
Detach the stand from the chassis
Support the screen facing up, locate the stand screws on the back or base, and remove them. Lift the stand away gently, ensuring no cables are connected to the stand itself.
Tip: Keep stand screws in a labeled container to avoid misplacement. - 3
Remove the rear housing screws
With the stand removed, identify all the perimeter screws that secure the rear cover. Use the correct screwdriver type and keep screws separated by location.
Tip: Use a magnetic driver to prevent dropping screws into the chassis. - 4
Open the rear cover
Carefully pry the back cover away from the frame using plastic prying tools. If plastic clips resist, work your way around the edge to release them evenly.
Tip: Do not force panels; a gradual, even release minimizes cracking. - 5
Identify and disconnect external cables
Document cabling paths, then disconnect power, video, and any audio cables. Record their orientation for reassembly and avoid yanking on cables.
Tip: Label each cable with its port location to simplify later steps. - 6
Access the internal boards
Reveal the main circuit board, driver board, and any tilt or angle brackets holding the assembly in place. Remove mounting screws and set aside.
Tip: Take photos from multiple angles to understand how boards are mounted. - 7
Carefully remove the LCD panel (if needed)
If your goal is interior access, support the LCD by its edges and lift it away from the front frame. Avoid touching the glass or applying pressure to the panel area.
Tip: Place the panel on a soft surface to prevent damage. - 8
Inspect connectors and components
Check for loose connectors, signs of heat damage, or corrosion. Clean connectors with isopropyl alcohol on a lint-free cloth if needed, and reseat components carefully.
Tip: Do not over-tighten screws during reassembly. - 9
Prepare for reassembly
Re-check that all cables are labeled, photographed, and oriented correctly. Reassemble in the reverse order of disassembly, test fit, then boot the monitor to verify operation before final enclosure closure.
Tip: Take one final set of photos after reassembly to document the completed task.
Got Questions?
Is it safe to disassemble a monitor at home?
Disassembling a monitor can be safe if you take proper precautions: unplug the device, work on a static-free surface, and handle components gently. Avoid opening units under warranty if that would void coverage. If you’re unsure, seek guidance or professional help.
Yes, with proper precautions like unplugging, using anti-static gear, and handling parts gently.
Do I need to discharge capacitors before disassembly?
Power off and unplug the monitor. Allow a short wait to dissipate residual charge, and do not touch exposed circuit boards while power is disconnected. If you need to test for voltage, use appropriate equipment and caution.
Power off, unplug, and be cautious of any remaining charge in the unit.
Will disassembly void the warranty?
Opening a monitor often voids standard warranties, depending on the manufacturer’s terms. Review the terms before starting and consider professional service if your warranty is active.
Yes, there’s a good chance it affects warranty coverage; check terms first.
What basic tools do I need for this task?
A basic screwdriver set (Phillips and Torx), plastic prying tools, anti-static gear, a soft cloth, and labeled containers for screws are typically enough for most monitors.
You’ll usually need screwdrivers, plastic prying tools, and anti-static gear.
How can I avoid damaging the LCD panel during disassembly?
Always handle the panel by its edges and avoid touching the glass or applying pressure to the front surface. Use a soft surface to place the panel and keep it away from dust and moisture.
Handle the panel by the edges and keep it on a soft surface to avoid damage.
Watch Video
What to Remember
- Plan each step before touching hardware
- Document positions to simplify reassembly
- Handle the LCD panel with care to avoid damage
- Organize screws and cables by location
- Power down and discharge capacitors before touching internals
