How to Take Apart a Check Valve

Overview and safety considerations

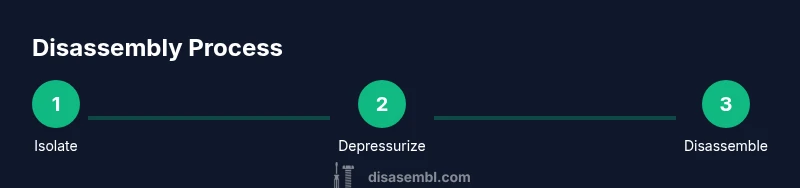

Disassembling a check valve requires attention to both safety and function. The job often involves piping in live systems, so the first rule is to ensure the system is depressurized and the area is secure. According to Disasembl, working on components under pressure can lead to fluid jets, burns, or injuries. Before touching any fasteners, locate the shutoff valve for the section of pipe that contains the check valve and isolate it. If you cannot safely isolate, do not proceed and arrange professional service. Once isolated, relieve any remaining pressure slowly and collect drips in a bucket to avoid messes. This preparation reduces the risk of sudden movement inside the valve body and helps you inspect components with minimal risk. Check valves rely on seats, seals and a spring loaded mechanism to control flow. Understanding these parts helps you identify wear and plan the disassembly. Remember that check valves come in several designs including swing, lift and tilting disc styles. The goal of taking apart is not to force components but to understand their condition, replace worn parts and restore proper operation. Throughout the process keep cleanliness high and organize parts as you remove them. A tidy workspace makes reassembly faster and safer and minimizes the chance of mixing parts from different valves. This guide focuses on common configurations and emphasizes safety, tool use and documented steps to help a DIY enthusiast.

Valve types and what you’ll typically encounter

Check valves come in several common designs, each with distinct internal parts that influence how you take them apart. Swing check valves use a hinged disk that swings open with flow and closes when flow stops. Lift checks rely on a weighted disc or plate that rises with pressure and seats against a gasket when flow reverses. Tilting disc valves employ a balanced disc that tilts to seal against a seat. Materials range from bronze and brass to stainless steel and cast iron, which affects how you handle corrosion and seals. Internal components typically include a bonnet or cover, a seat, a disc or ball, a spring in some designs, and O rings or gaskets. Before disassembly, determine which design you are dealing with and consult the manufacturer’s data if available. Even among similar models, dimensions and sealing interfaces vary, so use caution and verify part compatibility if you plan to replace seals or the disc. As you inspect, check for corrosion, pitting, or cracks on the body and inspect the seating surface. Any damage on critical surfaces can compromise performance and lead to leaks after reassembly. This section helps you anticipate what to expect and why a methodical approach matters.

How to prepare your workspace and plan the disassembly

A clean, organized workspace is essential for a successful disassembly. Start by turning off the system and isolating the valve along with any upstream and downstream lines if possible. Place a lined tray or bucket beneath the valve to catch drips and spilled fluids. Gather the tools you will need and lay them out in order of use to minimize misplacement. Take high-resolution photos at each stage or label components as you remove them to ensure accurate reassembly. Keep replacement parts on hand if you suspect wear or damage. Wear appropriate PPE such as safety glasses and gloves to protect eyes from splashes and skin from sharp edges. Review the valve model’s throat size, seat configuration and gasket type so you know what to expect when you remove the bonnet. By planning ahead, you reduce the chance of losing small parts or mixing components that belong to different valves. A deliberate approach also helps you track the sequence of disassembly and reassembly, which is especially important for valves that include multiple fasteners or spring loaded elements. If you encounter difficulty, pause and reassess—forcing components can cause damage and create safety hazards.

Detailed disassembly and inspection workflow

Begin by loosening the bonnet screws or bolts that secure the valve bonnet to the body. Do not completely remove fasteners until you confirm the line is fully depressurized. Once the bonnet is free, lift it carefully to reveal the internal components. Remove any springs, discs or balls with steady, controlled motions to avoid spring ejection or part loss. Inspect the seating surface for wear, scoring or corrosion. If the seat is damaged, this is a common cause of leaks and may necessitate replacement or professional service. Inspect the disc or ball for chips, cracks or excessive wear. If the component moves freely and shows no deformation, you can clean it with an appropriate solvent and a non-abrasive cloth. Check seals and O rings for cracks or hardening; replace them if needed. When reassembly is required, reinstall the spring (if present) in the same orientation, seat the disc properly, and replace the bonnet with even torque on all fasteners. Keep the workspace clean and dry during this process to prevent debris from entering the valve body. When reassembling, verify alignment with flow direction marks on the valve body and bonnet to avoid misassembly. After reassembly, perform a controlled leak test to confirm that seals are intact and the valve operates in both forward and reverse directions. A careful inspection at this stage can avert problems in service life and reduce the need for future maintenance.

Reassembly, testing, and maintenance tips

Reassembly should mirror the removal sequence, with careful torque on bonnet fasteners to avoid crushing gaskets or distorting the seat. Before restoring service, inspect threads and seating surfaces for cleanliness and ensure O rings are correctly seated. Reconnect the valve to the piping and gradually restore flow while monitoring for leaks. Perform a leak test by applying pressure and observing all joints and seals over a period of time. If leaks are detected, depressurize and recheck the bonnet and seating surfaces. For maintenance, consider replacing seals and gaskets as a preventive measure, especially if the valve is in a critical system or experiences frequent cycling. Record the service done, part replacements, and the date for future maintenance planning. Regular inspection of check valves can prevent backflow and improve system efficiency. Maintenance timing will depend on usage; high-cycle valves may require more frequent checks. Keeping spare seals and discs on hand can reduce downtime during routine maintenance. Finally, document any anomalies observed during disassembly, such as corrosion or unusual wear, so you can plan a more durable repair strategy or decide to replace the valve.

Authority sources and further reading

For safety best practices and reliability information, consult established standards and educational resources. This section provides reputable references that support safe disassembly and maintenance practices:

• https://www.osha.gov
• https://www.cdc.gov
• https://www.nist.gov

These sources offer general guidance on safety, hazard assessment, and materials handling that apply to mechanical disassembly tasks in home and professional settings.
