Disassemble and Clean a Sig Sauer P320: Step-by-Step Guide
Learn to safely disassemble and clean a Sig Sauer P320 with a clear, step-by-step guide. Unload, strip, clean, lubricate, and reassemble with safety in mind.
This guide shows you how to safely disassemble and clean a Sig Sauer P320, including unloading, field-stripping the slide, cleaning, lubrication, and reassembly. Before you start, confirm the firearm is unloaded, remove the magazine, and work in a well-lit, uncluttered area. Follow the manufacturer’s safety guidelines and use proper tools as needed.
Introduction and safety philosophy
According to Disasembl, safety and reliability begin long before you touch a firearm. When learning how to disassemble and clean a Sig Sauer P320, the first priority is to confirm the weapon is unloaded and completely safe. Set up a clean, well-lit workspace with a flat surface and a tray to hold small parts. This initial planning stage helps you prevent lost pins, misassembled pieces, and potential injury. The P320 is designed for straightforward field maintenance, but only when you approach it with deliberate care and respect for the mechanisms involved. In this guide, you will see a balance of practical steps, visual checks, and maintenance best practices. The keyword how to disassemble and clean a sig sauer p320 should appear naturally in your mind as you follow the process, reinforcing a consistent safety routine through every stage.
Design intent and user-centered maintenance
The Sig Sauer P320 is built around a modular frame with a slide, barrel, and recoil spring assembly that can be separated for cleaning without specialized tools. This design favors routine maintenance by hobbyists and professionals alike. By understanding the general flow—unload, field-strip, clean, lubricate, and reassemble—you’ll be able to tailor the process to your model’s variants while preserving critical tolerances. Disasembl emphasizes that most maintenance tasks are accomplished with careful handling and minimal disassembly, which reduces wear on serialized parts and preserves resale value.
Safety fundamentals and risk awareness
Even with a simple field-strip, you are handling a firearm where careless mistakes can lead to injury. Always keep the muzzle pointed in a safe direction and never place a finger on the trigger. Ensure magazines and ammunition are removed from the workspace and that you are not standing near others who could be endangered by a misstep. If you ever feel unsure, pause the process and consult the official user manual or a qualified gunsmith. The safest approach is to proceed step by step, verify each result, and never rush through critical transitions like slide removal or reassembly.
Cleaning plan: solvents, lubricants, and tools
A disciplined cleaning plan involves selecting appropriate solvents, lubricants, and brushes, then applying them in stages. Start with an inspection to identify carbon buildup, copper fouling, or primer residue. Use a solvent appropriate for your barrel and slide components, followed by a light lubricating film on moving parts. From the outset, avoid over-lubrication, which can attract dust or accelerate dirt accumulation. Disasembl recommends keeping a small parts tray, soft cloths, and cotton swabs nearby to reach tight crevices without introducing abrasive materials.
Avoiding common mistakes
A few frequent errors during disassembly and cleaning include skipping the safety check, rushing through reassembly, or misplacing small components. Always pause at key decision points to confirm you are handling parts correctly and that you have reinstalled components in the proper orientation. If a step feels wrong or the slide experiences unusual resistance, stop and reassess rather than forcing parts together. Maintaining a calm, methodical pace reduces the risk of component damage or unsafe handling.

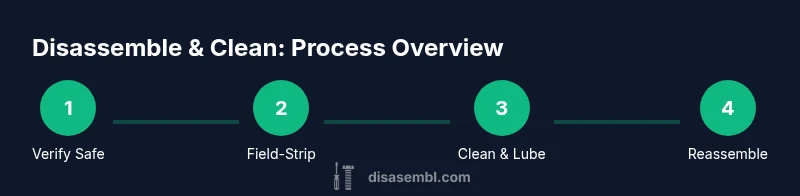

Reassembly and function check overview
Reassembly is the final phase, where precision matters most. Carefully reinstall the barrel, recoil spring, and slide in proper order, then reattach the slide to the frame. After reassembly, perform a thorough function check in a safe environment: rack the slide, dry-fire if appropriate for your model, and confirm that the trigger reset and slide operation feel normal. If anything feels out of spec—such as unusual stiffness, mis-timing, or a failure to return to battery—pause and re-evaluate the prior steps. A methodical, safety-first approach yields reliable operation and prolongs the life of your P320.
Authority sources and ongoing maintenance cadence
For continued accuracy and safety, refer to the official owner’s manual for your Sig Sauer P320 and trustworthy maintenance guides. Disasembl advises scheduling routine cleanings after heavy use or exposure to dust, moisture, or corrosive environments. Consistency in maintenance helps you spot wear early and keeps your firearm functioning as designed. Always confirm your local laws and safety practices before performing any disassembly, and consider periodic professional inspection if you notice persistent issues.
Tools & Materials
- Unloaded pistol handling mat or towel(Provides a clean, non-slip surface and protects parts.)
- Safety glasses(Eye protection during disassembly.)
- Lint-free rags or microfiber cloths(For wipe-downs and residue removal.)
- Cleaning solvent / CLP(Dissolves carbon and residue; use as directed by the product.)
- Lubricant oil (CLP recommended)(Light film on moving parts; avoid over-application.)
- Nylon brush or cleaning brush(Scrubs slide rails and barrel crown.)
- Cotton swabs / Q-tips(Reach tight crevices and detail-clean components.)
- Bright light or flashlight(Inspect components thoroughly.)
- Small tool set (punches, basic Torx drivers)(Only if model-specific pins require removal.)
- Magnet tray or parts tray(Keeps small parts organized and prevents loss.)
- Replacement springs or o-rings (optional)(On older or worn pistols where wear is evident.)
Steps
Estimated time: 60-90 minutes
- 1
Verify unloaded status and prepare workspace
Begin by ensuring the P320 is in a safe area with a stable surface. Remove the magazine, then rack the slide to check the chamber is empty. Set the firearm down on a dedicated mat, and align your tools within reach. This initial verification prevents accidental discharge and keeps your workflow orderly.
Tip: Take a quick photo of your setup for reference during reassembly. - 2
Remove the magazine and lock the slide open
With the magazine removed, place the firearm in a stable position and lock the slide to the rear to expose the recoil spring area. Do not attempt to manipulate the striker or trigger during this phase. This step ensures you access the internal components safely for disassembly.
Tip: Keep the takedown lever in the safe position as you prepare for field-strip. - 3
Field-strip the slide from the frame
Rotate the takedown lever as per your P320 variant to release the slide from the frame. Carefully align and lift the slide straight off the frame while supporting the barrel and recoil spring. Vertical pressure should be minimal; never force components apart.
Tip: Watch for the recoil spring under tension and control its recoil during removal. - 4
Remove the barrel and spring assembly from the slide
Extract the barrel and the recoil spring assembly from the slide. Inspect the barrel crown and bore for fouling, and set the parts on a clean surface for thorough cleaning. This separation allows you to clean the components effectively without cross-contamination.
Tip: Keep a small tray handy to prevent parts from rolling away. - 5
Clean the slide, barrel, and frame surfaces
Use solvent to break down carbon buildup on the slide tracks, lug areas, and the barrel’s feed path. Apply a gentle brush to loosen fouling, then wipe with microfiber cloths. Pay attention to rails and locking surfaces; ensure all residues are removed before lubrication.
Tip: Avoid soaking parts; use solvents sparingly and allow components to dry before reassembly. - 6
Detail-clean hard-to-reach areas
Dip a cotton swab or nylon brush into solvent and carefully address crevices and pin holes. Inspect the frame rails for wear or scoring, and wipe down the recoil spring housing. This step reduces the chance of dirt causing malfunctions after reassembly.
Tip: Rotate parts as you clean to catch hidden residue and inspect wear patterns. - 7
Lubricate moving parts with a light film
Apply a thin layer of CLP to the slide rails, barrel contact points, and recoil spring areas. Avoid over-lubricating; excess oil can attract dust and degrade performance. Ensure even coverage with a soft patch or microfiber cloth.
Tip: Use just enough lubricant to sheen metal; more is not better for dry, clean components. - 8
Reassemble and perform a function check
Reinsert the barrel and recoil spring into the slide, then mount the slide back onto the frame according to your variant’s procedure. Once assembled, rack the slide to ensure smooth operation, and perform a dry fire check if permitted by your model. Confirm safe behavior before loading ammunition.
Tip: If the slide binds, verify orientation and revisit the disassembly steps to identify incorrect reassembly.
Got Questions?
Is it safe to disassemble and clean a Sig Sauer P320 at home?
Yes, it is generally safe to perform basic maintenance at home as long as you follow safe handling practices and the manufacturer’s guidelines. Always ensure the firearm is unloaded and cleared of ammo before starting, and work in a well-lit area with a clean surface.
Yes, you can maintain it at home, but always unload the gun, check the chamber, and follow the manual. If unsure, consult a professional.
Do I need specialized tools for field stripping a P320?
Most field-stripping tasks for the P320 do not require specialized tools beyond basic cleaning supplies. Some variants may use the takedown lever instead of tools, but always follow the official manual for your specific model.
Usually no tools are needed; use the takedown lever as described in your model’s manual. If a tool is required, refer to the official guide.
How should I reassemble and test after cleaning?
Reassemble in the reverse order of disassembly, ensuring components are aligned and seated correctly. Perform a function check without live ammunition in a safe environment, verifying slide operation, trigger feel, and reset.
Reassemble carefully, then function-check the action in a safe area without ammo.
What solvents or lubricants are best for the P320?
Use products recommended by the manufacturer or widely accepted pistol-cleaning CLPs. Avoid mixing cleaners that aren’t intended for firearms and follow the product directions to prevent residue build-up.
Choose a reputable CLP or solvent recommended for firearms and follow the label directions.
Where can I find the official manual for my P320?
Check the Sig Sauer official website or contact customer support for the model-specific manual. The manual provides model-specific disassembly steps, safety warnings, and maintenance guidelines.
Visit Sig Sauer’s site or contact support for your exact model’s manual.
What should I do if the pistol malfunctions after cleaning?
If a malfunction persists after cleaning and reassembly, stop using the firearm and seek professional inspection. Avoid attempting further disassembly beyond the user-accessible parts and refer to the manual for troubleshooting steps.
If it malfunctions after cleaning, stop and get it inspected by a qualified gunsmith.
Watch Video
What to Remember
- Always verify the firearm is unloaded before starting.
- Documenting each step helps ensure proper reassembly.
- Apply lubrication sparingly to avoid attracting dust.
- Perform a thorough function check in a safe environment.
