How to Make Assembler Matrix Faster: A Practical Guide
Learn practical, step-by-step techniques to accelerate matrix operations implemented in assembly language, including data layout, tiling, SIMD, caching, and profiling. This guide blends theory with hands-on steps to help you squeeze maximum performance from your assembler matrix kernel in 2026.
To make an assembler matrix faster, start with a cache-friendly data layout, apply tiling and blocking, and leverage SIMD instructions. Use a careful mix of inline assembly or intrinsics, and consider multithreading where appropriate. Always measure with profiling tools and iterate to validate correctness and gains.
Core concepts behind assembler matrix optimization
Optimizing an assembler matrix kernel starts with understanding where the bottlenecks live. In low-level code, performance hinges on data movement, cache locality, and instruction throughput more than raw arithmetic. The goal is to keep the CPU busy by feeding it data as fast as it can consume it, while avoiding stalls caused by memory latency or branch mispredictions. According to Disasembl, effective optimizations combine data layout decisions with vectorization and careful control flow to maximize the kernel's instructional parallelism. This section lays the groundwork by describing how modern CPUs handle workloads and what indicators signal room for improvement. You’ll learn to identify hotspots, whether they arise from memory access patterns, cache misses, or unoptimized inner loops, and how to map those hotspots to concrete changes in your assembler matrix implementation.
Key ideas you’ll apply here include: separating computation from memory, choosing layouts that maximize spatial and temporal locality, and setting up repeatable benchmarks to quantify improvements. As you scan your kernel, note where data reuse occurs across iterations and how data is loaded into registers. Small, well-scoped changes often yield the biggest returns when you measure impact with representative data sets.
noteForReview”:null},
Choosing the right data layout for fast access
Data layout determines how matrices are stored and accessed in memory, which directly affects cache efficiency and prefetching. For an assembler matrix kernel, you typically want a layout that favors striding patterns your inner loops access most often. Row-major or column-major choices should align with the kernel’s access pattern to reduce cache misses and improve spatial locality. Aligning rows or columns to the CPU’s cache line size minimizes misaligned loads and makes streaming accesses more predictable. If your matrix dimensions are not multiples of the cache line, plan for padding or handling edge cases gracefully to avoid phantom cache faults.
In practice, you’ll experiment with tiled layouts that fit within L1 or L2 caches and compare their performance against a naive layout. Disasembl’s guidance emphasizes validating that any layout change preserves numerical accuracy and stability. Toward that end, keep a matrix copy for cross-checks during optimization to ensure results remain correct across all test inputs.
tip”:
Tools & Materials
- CPU assembler/ compiler toolchain (GCC/Clang)(Enable vectorization with -O3 and -march=native (or -march=core-avx2) where applicable.)
- SIMD support (AVX2/AVX-512, NEON as relevant)(Confirm CPU capabilities before optimizing with wide vectors.)
- Inline assembler or intrinsics toolkit(Choose NASM/gas for inline assembly or compiler intrinsics for portability.)
- Matrix data sets for benchmarking(Include small, medium, and large matrices to test scaling.)
- Profiling tools (perf, VTune, Valgrind, or Intel Advisor)(Use hardware counters to measure cache misses and instructions retired.)
- Test harness with correctness checks(Automated tests catch correctness drift during optimization.)
- Hardware with sufficient cache and multiple cores(Performance depends on hardware features; test on target environment.)

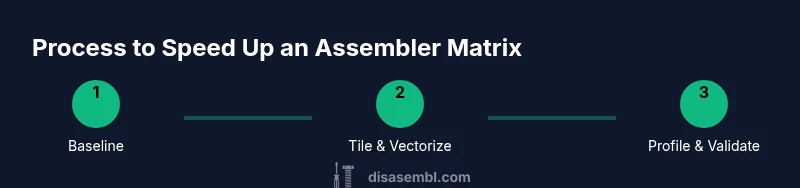

Steps
Estimated time: 4-6 hours
- 1
Define baseline and objectives
Establish a reliable baseline by running the current matrix kernel with representative inputs and recording throughput, latency, and memory metrics. Define clear goals (e.g., X% faster, Y% fewer L1 misses) to guide subsequent optimizations. This step also helps you verify numerical correctness before making changes.
Tip: Document baseline results and ensure reproducibility for future comparisons. - 2
Profile for hotspots
Use a profiling tool to identify hotspots in the inner loop, particularly loads/stores, arithmetic, and branching. Focus on memory-bound regions first, as they often determine overall performance. Note how often data is reloaded versus reused within a tile.
Tip: Compare cache hit rate against arithmetic intensity to decide where to optimize first. - 3
Choose data layout and tiling
Select a data layout that aligns with your inner-loop access pattern. Implement tiling (blocking) so that a working set fits in L1/L2 cache, reducing cache misses and improving data reuse across iterations. Start with small tile sizes and scale up based on profiling feedback.
Tip: Use padding to simplify boundary handling and avoid misaligned loads. - 4
Integrate SIMD vectors
Introduce SIMD vector operations to process multiple matrix elements per cycle. Use aligned loads/stores and avoid data dependencies that prevent vectorization. If inline assembly is risky, prefer compiler intrinsics for portability and easier maintenance.
Tip: Ensure data is properly aligned and guard against misalignment faults. - 5
Unroll loops strategically
Unroll inner loops to hide latency and improve instruction throughput, but monitor register pressure and code size. Excessive unrolling can reduce performance due to code cache pressure or register spilling. Balance unrolling with compiler optimizations.
Tip: Profile after unrolling to ensure gains persist and don’t regress due to cache effects. - 6
Minimize branch divergence
Reduce branches inside the inner loop to minimize mispredictions. Replace conditional paths with predication or compute masks where feasible. If branching is unavoidable, arrange data to keep branches almost uniform.
Tip: Always test with worst-case inputs to uncover hidden branches. - 7
Inline assembly vs intrinsics
Weigh the benefits of inline assembly against the portability and maintenance burden of intrinsics. Intrinsics are typically easier to port and optimize with compilers, while inline assembly can offer fine-grained control for specialized kernels.
Tip: Prefer intrinsics for long-term maintainability unless you have a compelling speedup justification. - 8
Exploit multithreading
Scale across CPU cores by partitioning work into independent tiles or slices. Use a thread pool or OpenMP where appropriate, ensuring minimal synchronization overhead. Balance workload to avoid cache contention across cores.
Tip: Lock-free or minimally synchronized tiling helps sustain throughput. - 9
Tuning the toolchain
Experiment with compiler flags that enable aggressive vectorization and cache optimizations. Consider -O3, -march=native, and relevant flags for OpenMP or SIMD backends. Validate that these flags don’t alter numerical results.
Tip: Keep a changelog of flags tested and the observed impact. - 10
Benchmark and validate
Re-run the full suite of performance tests after each major change. Use diverse matrix sizes and data distributions. Compare results to the baseline to ensure improvements are real and consistent.
Tip: Use automated checks to ensure numerical stability across datasets. - 11
Address correctness and edge cases
Rigorous validation is essential after optimizations. Verify results for edge cases (e.g., zero rows/columns, near-boundary tile sizes) and run unit tests to catch regression early.
Tip: Don’t optimize past the point where correctness is at risk. - 12
Document and maintain best practices
Summarize the changes, rationale, and test results in a changelog or wiki. Maintain a set of reusable templates for future kernels to speed up iterative improvements.
Tip: Create a reusable pattern for future projects to reduce discovery time.
Got Questions?
What is an assembler matrix?
An assembler matrix refers to matrix operations implemented with low-level assembly language or tightly optimized kernels. The focus is on maximizing performance through data layout, vectorization, and careful control flow.
An assembler matrix is a matrix operation implemented in assembly language to squeeze out maximum speed using low-level optimizations.
Why does data layout matter for speed?
Data layout determines memory access patterns and cache behavior. A layout that improves spatial locality and reduces cache misses can dramatically increase throughput.
Data layout changes how quickly the CPU can fetch the data it needs, so choosing the right layout is often the fastest path to gains.
When should I use inline assembly vs intrinsics?
Inline assembly offers granular control but hurts portability. Intrinsics provide a safer, portable path to SIMD acceleration while still giving substantial speedups for well-structured kernels.
Use intrinsics for good balance between performance and portability; reserve inline assembly for cases that intrinsics can’t express well.
Can I parallelize matrix optimizations on CPU cores?
Yes. Multithreading can dramatically improve performance by partitioning work into independent tiles. Be mindful of cache-sharing effects and synchronization overhead.
Yes, you can use multiple cores by splitting the work into tiles; just monitor cache effects and avoid heavy synchronization.
What are common mistakes to avoid?
Common errors include wrong data alignment, neglecting numerical precision, over-optimizing without profiling, and introducing race conditions in multithreaded code.
Be careful with alignment and correctness; test thoroughly after each optimization step.
How do I measure improvement accurately?
Use repeatable benchmarks with fixed inputs, compare against the baseline, and track multiple metrics (throughput, latency, cache misses) to validate genuine gains.
Run the same tests before and after changes and compare the results across several metrics.
Watch Video
What to Remember
- Benchmark baseline first and measure gains
- Tile and align data to maximize cache locality
- Prefer SIMD and intrinsics for portability and speed
- Profile iteratively and verify correctness after each change
