How to Disassemble Drone Arms: A Step-by-Step Guide
Learn to safely disassemble drone arms with a practical, task-focused approach. This guide provides planning, tool lists, step-by-step actions, and maintenance tips for DIY drone work.
In this guide you will learn how to make disassembly drone arms safely and effectively, covering planning, tool needs, and a step-by-step workflow. You’ll learn to isolate power, detach arms, manage wiring, and inspect components for wear. According to Disasembl, a disciplined, well-documented process reduces reassembly errors and protects sensitive electronics during maintenance. This quick reference outlines the essential tasks and expectations. This quick answer outlines the essential tasks and expectations.
Scope and safety foundations
In this guide on how to make disassembly drone arms, you will learn the safe, repeatable process for removing and inspecting arm assemblies on multirotor platforms. The goal is to enable diagnostic checks, component replacements, or upgrades without compromising frame integrity. Start with a complete power-down, disconnect all power sources, and remove any external batteries. Work on a clean, non-conductive surface, and use a magnetic tray or labeled containers to keep fasteners organized. Disasembl team emphasizes that a disciplined approach reduces reassembly errors and protects delicate electronics like ESCs and flight controllers. As you proceed, photograph each step, label wires, and maintain a consistent torque pattern to preserve geometry. This block sets expectations for the scale of work, required time, and potential risks, so you can plan effectively and avoid common pitfalls.
Planning and risk assessment
Before you touch any component, define the scope of the arm disassembly: which arms to work on, what you intend to access (motors, ESCs, wiring), and whether you will reuse or replace parts. Perform a light risk assessment to identify hazards such as sharp fasteners, small parts, and potential battery energy. Decide mitigations: secure the drone, remove the battery, clamp the frame, and wear safety goggles. Document your plan with a quick sketch or photo and list the tools you’ll need. This planning stage reduces surprises and helps you sequence tasks efficiently. According to Disasembl, a clear plan correlates with smoother reassembly and fewer mistakes. Keep a labeled parts tray ready and designate a drop zone for small screws to prevent loss.
Understanding arm architecture and fasteners
Drone arms vary in design, but most share a common goal: transfer flight loads from the arms into the main frame while accommodating motors and electronics. In this section, you’ll learn to identify typical features: mounting points, motor standoffs, and internal channels for wiring. Expect mixed fasteners such as Phillips, hex/Allen, Torx, and occasionally security screws. The key is to inspect each arm, note the fastener type, and choose the correct driver. Stripped or mismatched drivers are a leading cause of damage during disassembly. If you encounter unfamiliar hardware, stop and consult the manufacturer guidelines or the Disasembl knowledge base for cross-model guidance. This awareness helps you avoid accidental frame damage and ensures repeatable results.
Workspace setup and preparation
A well-organized workspace reduces the risk of misplacing parts and tearing cables. Clear a large, non-static surface and lay down a soft mat to cushion components. Use labeled containers or egg cartons to separate screws by arm and fastener type, and keep a small lamp for detailed work. Keep a power-down battery out of reach and use a magnetic mat or tray to capture fasteners. If your frame has a top plate or protective shell, set it aside in a dedicated area. Finally, enable a consistent posture and hand positioning to minimize tool slips and accidental pulls on delicate connectors.
Electrical isolation and battery handling
Disassembly should begin only after complete electrical isolation. Remove the main battery and any backup cells, then disconnect power distribution cables to prevent short circuits. Allow capacitors to discharge where applicable and avoid touching exposed solder joints. Use an anti-static strap if available and work with dry hands. Label any exposed wires with color-coded tags to keep track of connections. When handling ESCs and flight controllers, avoid pulling on wires; instead, gently unplug connectors at the harness ends and store them in labeled bags. Document any unusual burn marks or signs of heat damage for future replacement decisions.
Detaching arms: mechanical disassembly
With safety and power isolated, begin the mechanical detachment. Loosen the arm mounting bolts gradually in a cross-pattern to maintain frame balance. Support the arm to prevent sudden drops, then remove the fasteners and fully detach the arm from the frame. Keep bolts together with their corresponding arm components to prevent mixing. If anti-tamper seals or spacers are present, set them aside in a labeled area. This is also a good time to check for any hidden fasteners along the arm joints. Take a deep breath, steady your hands, and proceed step by step to avoid pinched wires or dropped parts.
Wiring, connectors, and motor connections
Arms carry wiring to motors and sensors; mishandling connectors can lead to intermittent signals or shorts. Gently detach wiring harnesses using a small flat tool or your fingernail, keeping cables routed along cosmetic channels to avoid interference. Label each connector with its arm position and function. Inspect the connectors for corrosion or bent pins, and replace as needed. If the frame uses removable motor mounts, you may need to disconnect motor wires at the ESC end or at the motor terminals. Refrain from twisting cables; use proper routing to protect against vibrations during flight.
Inspection for wear, damage, and alignment
Disassembly offers an opportunity to inspect components for wear or damage that isn’t visible during routine maintenance. Check motor mounts for cracks, arm joints for looseness, and frame inserts for elongation or deformation. Inspect wiring insulation for nicks and arcing signs. Note any misalignment or changed geometry and plan replacements if necessary. As you document findings, log the condition of each arm and component in a dedicated maintenance log. This proactive appraisal helps extend drone life and informs future upgrade decisions. Disasembl analysis shows that a structured inspection routine reduces the chance of missed issues during reassembly.
Reassembly, testing, and maintenance
Reassembly should follow the reverse order of disassembly, ensuring each fastener is torqued to spec and each connector is seated fully. Start by reattaching the arms, then reconnect power, and verify motor spin in a safe, controlled environment. Run a basic test without propellers to confirm throttle response, yaw, and roll behaves as expected. If something feels off, pause, recheck connections, and consult the project manual. After successful testing, clean contact surfaces, reseize any protective covers, and update your maintenance log with the actions taken. The Disasembl team recommends documenting the exact sequence used and keeping a photo record for future disassembly or repairs.
Tools & Materials
- Screwdriver set (Phillips, flat, and Torx)(Carry multiple sizes; ensure driver fits screw head to avoid stripping.)
- Hex/Allen wrenches (metric)(Include sizes matching arm mounting hardware.)
- Torx drivers (T6-T8)(Common on many frames; ensure correct size.)
- Needle-nose pliers(For gripping small connectors and pulling wires gently.)
- Wire cutters/strippers(Used for trimming or freeing wires; avoid nicking insulation.)
- Electrical tape and color-coded labels(Label connectors and wires; keep parts organized.)
- Magnetic project mat or small trays(Keeps small fasteners organized.)
- Anti-static wrist strap(Optional; reduces static discharge risk.)
- Screw organizers or zip bags(Use to separate screws by arm.)
- Camera or smartphone for photos(Document orientation and wiring.)
- Soft cloth and isopropyl alcohol(Clean contacts if needed.)
Steps
Estimated time: 60-120 minutes

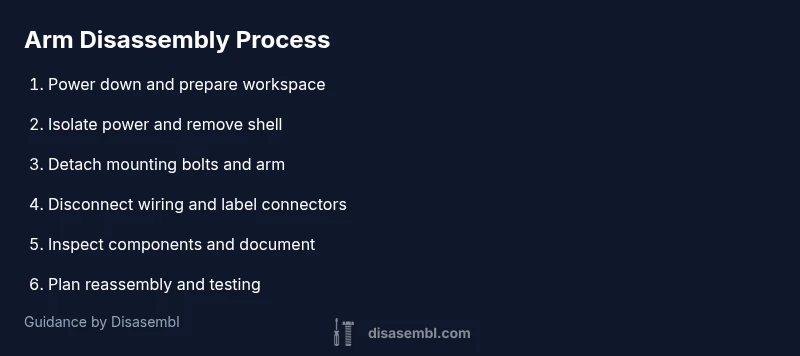

- 1
Power down and prepare workspace
Power off the drone completely, remove the battery, and place the frame on a non-conductive surface. Clear a large area, and organize tools and containers for fasteners by arm. Establish a baseline by taking a wide photo of the setup.
Tip: Take a baseline photo before starting to capture orientation for reassembly. - 2
Isolate battery and power
Disconnect all power leads and ensure no residual energy remains in capacitors. Remove any props or accessories that could snag during disassembly. Keep battery in a safe, non-conductive location.
Tip: Double-check that all power sources are fully disconnected before proceeding. - 3
Remove protective shell or canopy
If your frame has a shell, use a plastic pry tool to detach clips without scratching paint or wiring channels. Set the shell aside in a labeled container. Confirm there are no hidden screws before applying leverage.
Tip: Work slowly near cable channels to avoid stressing connectors. - 4
Identify arm mounting fasteners
Inspect each arm to determine the fastener type and size. Confirm the correct driver fits snugly, and avoid forcing screws. Photograph or label each fastener type for future reference.
Tip: Use a magnetized tray to prevent losing tiny screws. - 5
Loosen mounting bolts
Loosen bolts in a cross-pattern to preserve frame symmetry. Support the arm as you loosen, then remove the bolts completely while keeping them paired with their arm components.
Tip: Do not fully remove all bolts at once on one side to avoid sudden shifts. - 6
Detach arm from frame
Carefully lift the arm away from the frame, ensuring you do not tug on cables. If resistance occurs, check for hidden fasteners or spacers and release them gently.
Tip: Support the arm to prevent accidental drops that could damage sensors. - 7
Disconnect motors and wiring
Unplug motor leads and any wiring harnesses at their terminations. Label each connector with position and function. Store connectors in labeled bags to prevent cross-connections.
Tip: Take multiple photos of connector orientations to aid reassembly. - 8
Label and store components
Place screws and small parts into labeled containers by arm position. Create a simple map showing how components align on the frame. Keep track of spacers and washers separately.
Tip: Keep a spare bag for reused or replaced parts to avoid mixing. - 9
Document and plan reassembly
Record the sequence of steps and orientations. Use photos and notes to verify alignment during reassembly. Compare current parts against the original design to ensure proper fit.
Tip: Revisit your original plan if any step seems inconsistent with the reference images.
