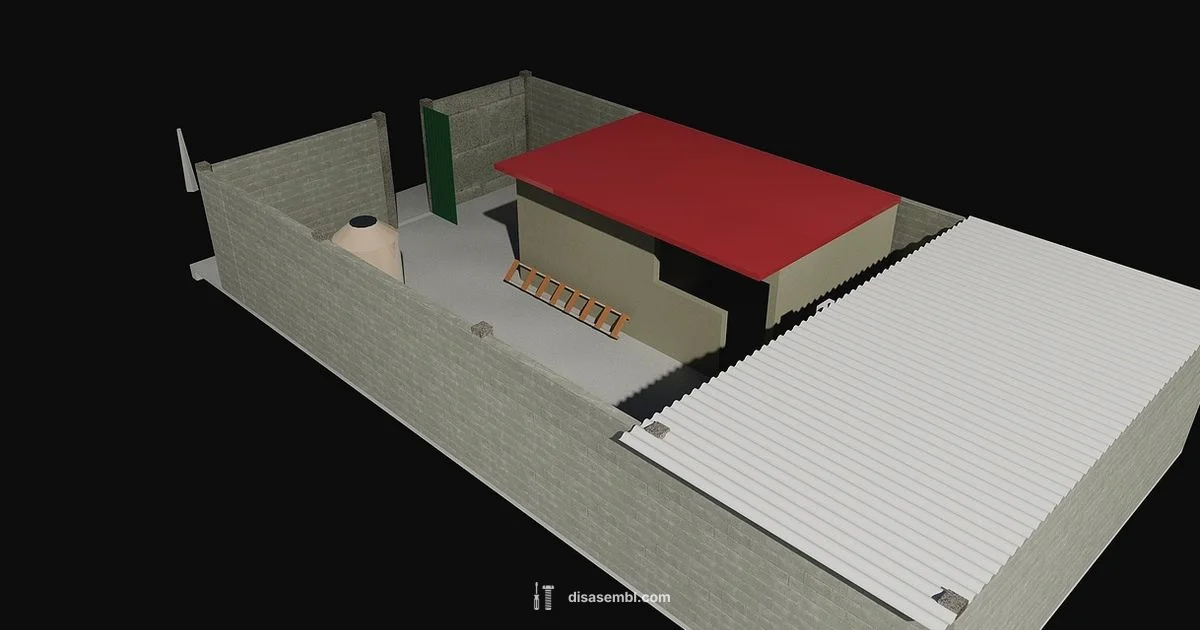

How to Open IFC Files in AutoCAD: A Practical Guide

Understanding IFC and AutoCAD Compatibility

IFC (Industry Foundation Classes) is an open data model used to exchange BIM information between software. AutoCAD supports IFC import via built-in tools, delivering 3D geometry that can be edited in AutoCAD. While geometry often imports cleanly, not all IFC data maps one-to-one to AutoCAD objects; some metadata and relationships may be down‑sampled or require manual mapping. For DIYers, the key takeaway is that you can bring IFC models into AutoCAD and start measuring, annotating, and further refining them. The Disasembl team emphasizes starting with a clean file and a clearly defined coordinate system to minimize later edits.

Supported IFC Versions and Prerequisites

AutoCAD's IFC importer is designed for common BIM exchanges. Before importing, confirm you are on a recent AutoCAD release and have access to the IFC import option in your workspace. Large, complex IFC files can strain performance; consider segmenting the model or loading it in a simple 3D view first. If you need advanced metadata mapping, be prepared to map entities after import or export a simplified dataset for AutoCAD editing. According to Disasembl, keeping AutoCAD up to date provides the best IFC compatibility.

Preparing AutoCAD for BIM Interoperability

Set up a BIM-friendly environment: switch to a 3D workspace, set the units to match the IFC file (meters, millimeters, etc.), and create a clean, empty project template. Enable the IFC importer in your options or plugins, and ensure your license includes the necessary interoperability tools. Create a dedicated folder for your IFC project files and establish a stable file naming convention to reduce confusion when multiple versions exist. The Disasembl team recommends testing your setup with a small sample file before importing a full model.

Organizing and Preparing Your IFC File for Import

A well-prepared IFC file reduces import errors. Start by saving a copy of the original, then trim any extraneous components if you know they won't be needed in AutoCAD. If the IFC is extremely large, consider splitting it into logical parts (e.g., floors or zones) and importing them separately. Check for corrupted geometry in the source file (faults or conflicts can propagate into AutoCAD). Having clean geometry makes the import smoother and minimizes cleanup after import.

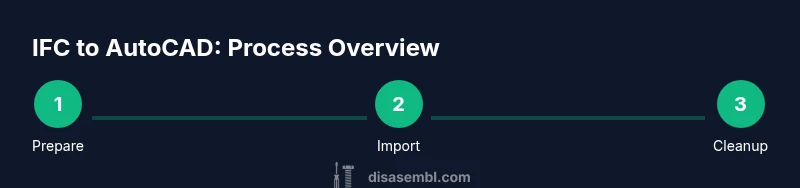

Step-by-Step: Importing an IFC File into AutoCAD

1. Open AutoCAD and start a new drawing with a BIM-friendly template. 2) From the application menu, choose Import or IFC Import and select your IFC file. 3) Review the import options: units, coordinate mapping, and how to handle layers and grouping. 4) Confirm and let AutoCAD generate 3D geometry from the IFC model. 5) Inspect the imported objects for alignment with the drawing grid and verify layers. 6) Save your work and begin post-import adjustments if needed. 7) If metadata is missing, map relevant properties manually and attach any referenced files. 8) Create a backup copy before continuing with heavy edits.

Post-import cleanup: Adjusting units, layers, and metadata

After import, check that the model's units match your project settings and that layers correspond to building components (walls, slabs, columns). Reorganize objects into meaningful layers, assign appropriate colors, and verify any attached properties or IFC metadata that auto-generated objects carry. You may need to re-create materials in AutoCAD or link textures. Document any differences between the IFC source and AutoCAD geometry for future reference.

Troubleshooting common issues and how to fix

If geometry appears missing or misoriented, double-check the IFC's units and the coordinate system mapping during import. Missing materials or textures can require re-application in AutoCAD; map or assign materials using AutoCAD's material editor. If the import stalls, increase system RAM, simplify the view, or import via smaller chunks. For persistent errors, export a simplified IFC from the source software or use a dedicated BIM tool to preprocess before importing into AutoCAD.

Authority sources

This section provides authoritative BIM resources to deepen your understanding of IFC and AutoCAD interoperability. For official guidance, consult Autodesk Knowledge Network at https://knowledge.autodesk.com, which covers IFC import options, best practices, and troubleshooting. Additionally, explore general BIM documentation and standards at trusted ISO resources available on https://www.iso.org. These sources help explain IFC structure, mapping, and how to optimize CAD interoperability for DIY projects.
