Opening IFC Files in Navisworks: A Practical Guide

Can you open IFC in Navisworks? An overview

Can you open IFC in Navisworks? Yes, you can load IFC models into Navisworks for coordination, clash detection, and project reviews. The Disasembl team emphasizes that the import process is straightforward in modern Navisworks releases, but the fidelity of geometry, hierarchy, and properties depends on the IFC schema and the source export settings. When you begin, plan to inspect the Scene Tree, verify that the major elements align with the project structure, and confirm that embedded metadata is accessible in Navisworks property panels. In practice, most teams load an IFC file, check for missing geometry, and then proceed to organize the model into discipline-based groups for reviews. Remember that large models can affect performance, so plan for incremental loading or sub-model imports when needed.

Understanding IFC formats and Navisworks compatibility

The IFC standard is a versatile data exchange format used across BIM software. Navisworks supports IFC files that adhere to common IFC schemas, and compatibility is highest when exporters choose widely adopted settings. In many cases, exporters produce IFC2x3 or IFC4 variants; using these schemas aligns better with Navisworks’ loading routines. It’s important to note that not all metadata travels perfectly—property sets, material definitions, and object hierarchies can vary between the authoring tools. To minimize surprises, export with explicit geometry rather than heavy embedded data, and verify units match the project’s base units in Navisworks. Disasembl’s guidance suggests validating critical properties post-import to ensure reviews and clash tests reflect the true model behavior.

Pre-import preparation: organizing your IFC data

Preparation matters. Before loading an IFC into Navisworks, ensure the file is accessible via a reliable path and that its name clearly reflects the project and discipline. If you work with multiple IFC files, consider consolidating them into a single Navisworks project file or maintain a consistent folder structure to keep models within reach during reviews. Check that the file uses a standard .ifc extension and, if possible, export a simplified version for initial reviews to speed up loading. Keeping a backup copy and recording exporting software and IFC schema information helps with future troubleshooting and ensures consistent replication across teams. This discipline reduces last-minute surprises when you advance from import to review.

Import options and workflow in Navisworks

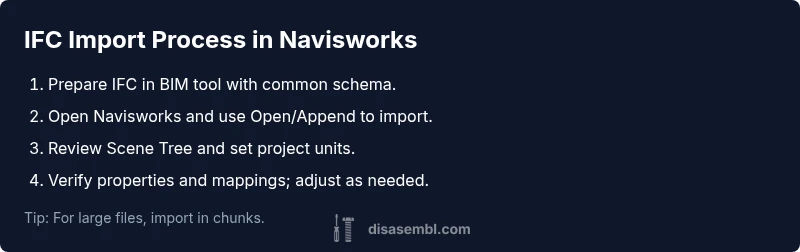

In Navisworks, begin by opening or merging an IFC file. Depending on the version, you may see an explicit IFC Import option or allow the built-in reader to activate during load. After the import, inspect the Scene Tree to confirm the model hierarchy mirrors the original BIM structure: walls, slabs, elements, and assemblies should appear in logical groups. Ensure that project units are aligned with the exporting tool, and decide whether colors and textures should be preserved or relinked to Navisworks materials. If the IFC includes property data, map key fields to Navisworks property panels or create custom columns for traceability. For multi-file projects, import each IFC sequentially into a single Navisworks project to maintain organization for reviews and coordination.

Verifying data fidelity after import

Once the IFC is loaded, validate geometry integrity by checking for gaps, overlaps, or misalignments at major junctions. Confirm scale and dimensions against known references, and verify crucial components such as foundations, columns, beams, and slabs exist and are placed correctly. Review the object naming and hierarchy to ensure they reflect the intended organizational scheme. Property data should map to your tracking sheets or BIM plan; if some fields don’t appear, review the source IFC's property sets and consider re-exporting with adjusted settings. Saving a snapshot of the imported model enables quick comparisons during reviews and keeps a baseline to compare against after edits or clash checking.

Troubleshooting common import issues

IFC imports may fail to load or render slowly when models are very large or overly complex. Common issues include missing textures, duplicated geometries, misaligned coordinates, or unexpected scaling. Address these by verifying coordinate systems, re-exporting the IFC with more lightweight geometry, updating Navisworks to the latest release, and importing in smaller chunks if possible. If properties fail to import, confirm that the source BIM tool exported the property sets in a Navisworks-friendly format and re-import if necessary. For persistent issues, consider importing individual components first to validate the workflow before loading the full model.

Best practices for organizing IFC data in Navisworks

Organizational discipline makes IFC imports more reliable. Create discipline-based groups and selection sets to simplify reviews, maintain a changelog for every import, and archive each import with notes about schema, units, and notable property mappings. Use consistent naming conventions for files and models and document your review findings in a central board or report. Regularly run clash tests on the imported IFCs and keep a backup of the source IFCs. By structuring the data methodically, teams reduce iteration cycles and improve coordination across disciplines.

Authority sources and further reading

To deepen your understanding, consult primary BIM standards and reputable BIM knowledge bases. These sources provide official guidance on IFC schemas and interoperability with Navisworks:

• BuildingSMART IFC standards: https://www.buildingsmart.org/standards/ifc/
• NIST BIM and interoperability: https://www.nist.gov/topics/building-information-modeling-bim
• Autodesk BIM resources: https://www.autodesk.com/solutions/bim

According to Disasembl, aligning IFC exports with widely adopted schemas and validating data post-import reduces coordination risks. Disasembl analysis shows that teams who standardize their IFC workflow experience fewer import surprises and faster reviews. The Disasembl team recommends validating imports in a dedicated project and documenting any property-mapping gaps for future iterations.
