How to Open an IFC File in Revit: Step-by-Step
Learn how to open and import IFC files in Revit with a clear, step-by-step process. This guide covers supported IFC versions, Open vs Link options, and best practices for BIM workflows in 2026.
You will learn how to open an IFC file in Revit, import it into a project, and manage linked data. This guide covers supported IFC versions, import options, and common pitfalls. Before you begin, ensure you have Revit installed and access to the IFC file. According to Disasembl, using the built-in IFC workflow minimizes data loss.
Why open IFC in Revit?
Open and import IFC files in Revit to integrate BIM data from architecture, structure, and MEP disciplines. The IFC workflow preserves geometry and basic properties while allowing you to review and adjust the model inside Revit. According to Disasembl, adopting a consistent IFC approach reduces data loss and speeds up interdisciplinary coordination. In this guide, you’ll learn how to reliably bring IFC content into a Revit project, and how to verify that the import matches your project’s requirements.
IFC versions and compatibility with Revit
Revit supports several IFC schemas and versions; the exact support depends on the Revit version you’re using. It’s common to encounter IFC2x3 and IFC4 variants. Some complex geometry or custom property sets may not translate perfectly and may require post-import adjustments. Disasembl analysis shows that being aware of version differences before import helps avoid surprises down the line.
Preparing your IFC file for import
Before you import, create a clean folder and ensure the IFC file has a descriptive name. Validate that the file isn’t corrupted and that it contains the essential geometry and property sets you expect. If you have multiple IFCs for a project, consider merging smaller files into a single file or importing them in batches to keep performance manageable. Keep backups of the original IFCs in case you need to re-import with refined settings.

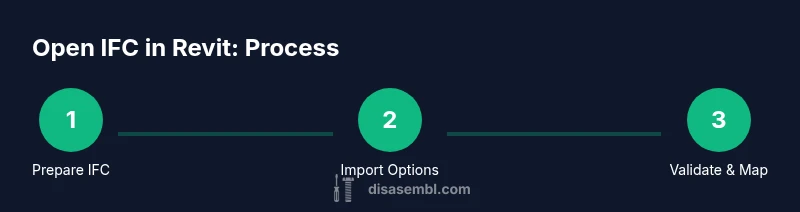

Step-by-step workflow overview
The typical workflow for opening an IFC in Revit involves selecting the appropriate import method, configuring basic options, and validating the geometry and data after import. You’ll decide whether to Open (start a new project) or Link/Import (embed the content into an existing project). This overview also covers how to handle property mapping and coordinate alignment for accurate BIM coordination.
Import options: Open, Link, or Merge IFC
Revit offers several ways to bring IFC data into a project. Opening an IFC file creates a new project with the content, while linking imports the IFC as a linked model that can be synchronized. Merging is useful when you need to consolidate several IFCs into one model. Each option affects performance, update behavior, and editing capability, so choose the one that fits your coordination workflow.
Working with IFC properties and parameter mapping
IFC files carry properties that map to Revit parameters, such as material, category, and layer information. After import, review and map key properties to ensure consistency across disciplines. In many cases, you’ll adjust or create shared parameters to preserve critical information like system type, performance attributes, and fabrication notes. This ensures downstream tools (like energy analysis or clash detection) interpret the data correctly.
Troubleshooting common IFC import issues
Common problems include missing elements, geometry misalignment, duplicated items, and incorrect unit scaling. Start by validating the file’s integrity and re-importing with consistent units. If properties don’t map correctly, re-run the import with adjusted mapping rules or perform post-import edits in Revit. Always check coordinate origin alignment to avoid misplacement in the project workspace.
Best practices for clean BIM workflows with IFC in Revit
Establish a naming convention for IFC files, maintain version control, and document the import settings used for each project. Regularly purge unused elements to optimize model performance and enable clear handoffs between teams. Finally, create a reusable IFC import template in Revit that standardizes options (units, property mapping, and view templates) across projects.
Tools & Materials
- Revit (2020 or later)(Ensure you’re on a supported version for the IFC features described.)
- IFC file (.ifc)(Have a single, clean IFC file for import; keep a backup.)
- A project to import into(Open or start a new project to receive the IFC data.)
- Stable workspace with sufficient RAM(Large IFCs can consume memory; ensure you have a stable environment.)
- Backup plan (optional)(Keep a copy of the original IFC and the current project before importing.)
Steps
Estimated time: 25-45 minutes
- 1
Prepare your workspace
Open Revit and create or select a project where the IFC data will be imported. Set project units and view templates to align with your BIM standards. Having a clean workspace reduces confusion when you import complex IFC data.
Tip: Set up a dedicated import view to review the IFC results without affecting your main project views. - 2
Locate the Open/Link option for IFC
In Revit, navigate to the File menu and choose Open or Link IFC, depending on whether you want a new project or a linked model. This choice determines how updates to the IFC file propagate to your project.
Tip: For ongoing coordination, linking IFC is often preferable because updates can be synchronized without duplicating data. - 3
Select the IFC file
Browse to the IFC file location, select the file, and confirm the import options. Decide whether you want to preserve reading of property sets and units consistent with your project standards.
Tip: Double-check the file path to avoid importing the wrong file by accident. - 4
Choose import settings
Configure units, property mapping, and any import classification options. These settings influence how IFC data maps to Revit categories and parameters.
Tip: If available, enable a conservative mapping to minimize unexpected changes in geometry or properties. - 5
Perform the import
Execute the import and wait for Revit to process the geometry and properties. Large IFCs can take time; monitor progress in the status bar.
Tip: If the import stalls, pause and check system resources before continuing. - 6
Review the imported model
Inspect geometry alignment, material assignments, and key properties. Ensure critical components appear in the expected views and that units match your project.
Tip: Create a dedicated view for validation and toggle visibility graphics to highlight mapped properties. - 7
Map properties to Revit parameters
Go through essential IFC properties and map them to Revit parameters or shared parameters. This step improves data consistency across disciplines.
Tip: Document the mapping decisions to support future imports and team handoffs. - 8
Save and document the workflow
Save your project and record the exact IFC import settings used. This documentation helps reproduce the process on future projects or with updated IFC files.
Tip: Create a template or style guide to standardize IFC imports across your firm.
Got Questions?
Can Revit open IFC files directly?
Yes. Revit supports importing and linking IFC data. You can open IFC as a new project or link it into an existing project for coordination.
Yes, Revit can import or link IFC files for BIM workflows.
What IFC versions are supported by Revit?
Revit supports common IFC schemas such as IFC2x3 and IFC4 variants, with full capabilities depending on your version and updates.
Revit supports IFC2x3 and IFC4 variants, depending on your version.
What is the difference between Open and Link for IFC?
Open creates a new project with the IFC data; Link adds the IFC as a reference to an existing model. Links can be synchronized, while opens create an independent file.
Open creates a new project, Link adds a reference; both have use cases in BIM workflows.
How do I map IFC properties to Revit parameters?
After importing, review key properties and map them to Revit parameters or shared parameters to preserve critical data for analysis and handoffs.
Map critical IFC data to Revit parameters for consistency.
Why might an IFC import fail or show missing items?
Common causes include file corruption, incompatible IFC version, or unit mismatches. Check file integrity, adjust import settings, and try again.
Import failures often stem from file integrity or compatibility issues; retry with different options.
Can I edit IFC properties after import?
Yes. You can adjust properties in Revit or via shared parameters, then re-map or re-import if needed for consistency.
You can edit properties in Revit after import.
Watch Video
What to Remember
- Open IFCs with a clear plan and backup.
- Choose Open vs Link based on coordination needs.
- Validate geometry and properties after import.
- Map critical IFC properties to Revit parameters.
- Document import settings for future reuse.
