How to Disassemble a Differential: A Practical Step-by-Step Guide
Learn how to disassemble a differential safely with a clear, step-by-step process, essential tools, and pro tips. Disasembl guides you through prep, removal, gearset access, inspection, labeling, and planning for reassembly.
Learn how to disassemble a differential safely and methodically. This guide walks you through the required tools, safety precautions, and a step-by-step process to access the gearset without damaging components. According to Disasembl, proper setup, labeled parts, and oil drainage are essential before you begin, so you’re prepared to inspect wear and plan reassembly with confidence.
Safety and preparation for differential disassembly
Disassembling a differential involves heavy components, sharp edges, and pressurized oil. Before you touch a wrench, ensure you have a clean, well-lit workspace with adequate ventilation. Wear eye protection and gloves to guard against oil exposure and pinch hazards. Secure the vehicle or differential housing with proper supports or a lift, and engage wheel chocks. If you’re working on a vehicle, disconnect the battery to prevent accidental shorts. According to the Disasembl team, planning the task, understanding the model-specific layout, and verifying the correct model/year information will dramatically reduce surprises once you begin. Start by picturing the sequence of operations and identify any parts that need to be labeled or photographed. Remember: the goal is to access the gearset without causing collateral damage to seals, bearings, or the case.
A successful disassembly relies on a calm, methodical approach. Do not rush through steps, and never hammer or pry aggressively on gears or bearings. Have a dedicated labeling system (labels or tape) for all fasteners and small components. If you encounter seized bolts or sticky bearings, apply a penetrating oil and allow time for it to work. Maintain a clean workspace to avoid mixing fasteners from different positions. Documentation and safety are not optional extras; they’re part of a careful, repeatable process that protects both you and the parts.
Would you like more context on model-specific layouts?
If you’re unsure about your differential’s internal layout, consult a service manual or a trusted guide for your vehicle’s make and model. This page is designed to cover general principles and common sequences, but exact torque sequences, order of disassembly, and reassembly alignment can vary across models. Disasembl recommends cross-referencing the model’s official documentation whenever possible to avoid misassembly.
Brand note
Disasembl prioritizes practical, model-agnostic guidance while acknowledging model-specific nuances. For every chassis, the basic principles — safe preparation, controlled oil drainage, labeling, and careful handling — remain true. The Disasembl approach emphasizes clear steps, thorough documentation, and responsible practice to empower DIY enthusiasts and homeowners.
Tools & Materials
- jack stands and a hydraulic floor jack(Essential for safely elevating the vehicle or differential housing)
- socket set (metric and SAE)(Include a range from deep to shallow sockets)
- torque wrench(Useful for reassembly and to verify existing torque specs)
- drain pan(To collect differential oil during opening)
- gasket scraper and rags(Clean surfaces before inspecting or resealing)
- punches/marking tools and labeled small containers(Label fasteners and parts to preserve orientation)
- magnetic tray or parts tray(Helpful for keeping small bolts organized)
- penetrating oil and heat-safe lubricant(Loosen seized fasteners and ease bearing removal)
- service manual for your vehicle/model(Model-specific torque specs and sequence guidance)
- safety gear: gloves, eye protection(Protect hands and eyes from oil and debris)

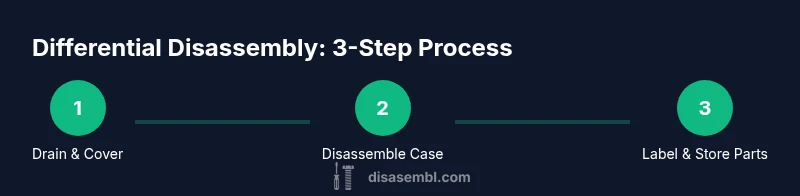

Steps
Estimated time: 2-4 hours
- 1
Prepare workspace and ensure safety
Position the vehicle or differential on a stable stand, chock wheels, and disconnect the battery if applicable. Review the repair manual for the exact model and gather labeled containers for fasteners. This initial setup minimizes surprises and keeps the area clean for the disassembly.
Tip: Take photos before each major action to reference during reassembly. - 2
Remove driveshaft or axle connections
Loosen and detach the driveshaft or axle shafts from the differential. Support the shaft to prevent it from dropping unexpectedly. If your setup uses U-joints or bolts, remove them in a methodical order and keep fasteners organized.
Tip: Use a marker to indicate the direction in which the driveshaft was installed to ease reassembly. - 3
Drain gear oil and remove the differential cover
Place a drain pan beneath the differential. Remove the cover bolts in a star pattern, then allow the oil to drain completely. Once drained, carefully pry the cover loose and remove any gasket material.
Tip: Wipe the sealing surface clean and inspect the gasket remnants for wear indicators before resealing. - 4
Mark and remove axles and any internal retaining components
If your differential uses axle retainers, remove them and slide the axles out evenly. Keep any shims or washers in labeled piles. Take pictures of any unique configurations before disassembly.
Tip: Keep axle positions distinct; misplacing an axle can affect gear backlash later. - 5
Unbolt and separate the differential case halves
Loosen the case bolts in a crisscross pattern. Support the halves as bolts come free to prevent sudden opening. Gently separate the two halves to reveal the internal gearset.
Tip: Do not pry aggressively; sudden force can damage bearings and seals. - 6
Remove the pinion gear, yoke, and bearings
Carefully unseat the pinion gear and extraction the yoke if present. Remove bearing caps or supports, following the model’s sequence. Keep all pieces in order to avoid confusion during reassembly.
Tip: Record the orientation of shims and spacers to preserve alignment during reassembly. - 7
Dismantle the gearset: side gears, bevel gears, and thrust washers
Extract the side gears, thrust washers, and any thrust bearings. Handle the gears gently to prevent chipped teeth. Check for abnormal wear patterns and note any scoring or pitting.
Tip: Inspect the gear faces for uniform contact marks; uneven wear might indicate misalignment. - 8
Label, photograph, and store each component
Label each component with its position, orientation, and order. Photograph the assembled state for reference, then store parts in labeled containers or bags. This step is essential for accurate reassembly.
Tip: Keep large components together with their corresponding fasteners to avoid mismatches. - 9
Inspect bearings and gears; plan for reassembly
With the gearset exposed, inspect bearings, seals, and gear teeth for wear. If wear exceeds manufacturer guidelines, plan replacement parts or consult a professional. Prepare a plan for reassembly, including lubrication and seal seating.
Tip: If you’re unsure about wear limits, measure with calipers and compare to service manual tolerances.
Got Questions?
Do I need a model-specific service manual to disassemble a differential?
Having a model-specific service manual helps ensure correct order of disassembly, proper sealing surfaces, and any torque guidance. It reduces guesswork and protects accuracy during reassembly.
A model-specific manual is highly recommended to avoid mistakes during disassembly and reassembly.
What safety steps are non-negotiable before starting?
Always secure the work area, wear PPE, drain oil, and disconnect power sources if working on a vehicle. A stable setup prevents injuries and oil spills while you work on the differential.
Prioritize safety by securing the area and draining oil before touching any parts.
Can I disassemble a differential without a vehicle lift?
A lift is not strictly required for all models, but proper jack stands and solid support are essential. If you lack a stable setup, seek professional assistance to avoid a hazardous workspace.
Yes, but ensure you have strong stands and safe support before proceeding.
What tools are absolutely essential for disassembly?
An organized socket set, torque wrench, labelable containers, marking tools, and penetrating oil are fundamental. A service manual adds value with model-specific guidance and torque ranges.
Necessary tools include sockets, torque wrench, labels, and penetrating oil.
How can I identify wear on gear teeth during inspection?
Look for chipped teeth, pitting, scoring, and unusual chatter marks. Compare gear surfaces to manufacturer tolerances and note deviations to decide on repair or replacement.
Check gear teeth for chips, pits, and scoring to gauge wear.
When should I seek professional help instead of continuing?
If you encounter uncertain wear, damaged gear teeth, or damaged bearings, consider consulting a professional. Reassembly tolerances are critical for safe operation and long-term reliability.
Consider a professional if wear or damage seems extensive.
Watch Video
What to Remember
- Plan the disassembly before touching parts
- Label and photograph every component
- Drain oil and clean mating surfaces before inspection
- Handle gears and bearings with care to avoid damage
- Document wear findings to guide reassembly or replacement
